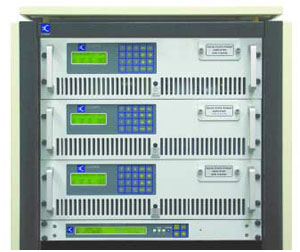

CODAN high power series of rack-mounting VSAT C-Band and VSAT Ku-Band SSPAs offer a wide range of distinctive advantages and enhanced features for satellite communications systems.
Key features
Output power
The VSAT C-Band SSPAs offer output power ratings of 60, 120 and 240 watts while the VSAT Ku-Band SSPA are rated at 40 and 80 watts.
Durability
The SSPAs are designed and tested to meet their performance specifications in an ambient temperature range from -10°C to +50°C. Field experience indicates that MTBFs of greater than 60,000 hours can be expected.
RF performance
RF performance is superb, particularly: intermodulation performance, gain stability over temperature and flatness across the RF band.
These SSPAs also boast industry leading spurious and harmonics specifications, while guaranteed RF performance ensures expensive system link margins do not have to be used to cope with SSPA RF performance variations. The high linearity and low spurious characteristics contribute to superior multi-carrier performance.
Power consumption
CODAN high power SSPAs feature a unique, low loss, efficient waveguide power combiner which results in low power consumption and low temperature rise. This ensures internal components do not suffer undue stress.
Power supply
All the high power SSPAs are AC mains powered and operate from either 115 V AC or 230 V AC.
Internal protection
Internal protection against high temperature and short or open circuit RF output is standard.
Advanced features
Local control
A user-friendly, menu driven keypad and LCD display is provided for operator control and monitoring of the SSPA. The operating configuration is stored in EEPROM to ensure the setup parameters are restored in the event of a power failure.
Enhanced monitor and control
All operating functions can also be controlled and monitored via the serial M&C interface. Functions that can be monitored include RF output power, heatsink temperature and internal supply rail voltages. The serial interface can also be used to perform a self test, mute the SSPA, and set the gain and maximum/minimum RF power alarm thresholds.
The SSPA can be supplied with a standard RS232 interface, or the optional RS422 or RS485 interfaces.
CODAN VSAT Redundancy switching system
CODAN VSAT redundancy switching systems can provide automatic changeover to standby SSPAs, maximising availability and minimising any disruption to service.
The CODAN 9070 based system provides rack-mounted redundancy control with extensive M&C facilities, and either 1:1 or 1:2 redundancy switching.
Major configuration options
Frequency bands
|
VSAT C-Band
|
5.850 - 6.425 GHz |
| VSAT Ku-Band |
14.0 - 14.5 GHz |
Output powers (VSAT C-Band)
|
CODAN 9660
|
60W |
| CODAN 9612Í |
120W |
| CODAN 9624H |

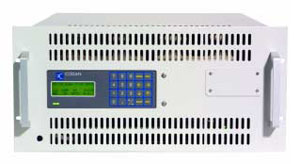

240W |
WR137 waveguide output standard.
Output powers (VSAT Ku-Band)
|
CODAN 9440
|
40W |
| CODAN 9480 |
80W |
WR75 waveguide output standard.
CODAN VSAT C-Band SSPA redundancy systems
|
CODAN 9070A
|
1:1 SSPA redundancy system for 9660/9612H 60/120W rack-mount SSPAs |
|
CODAN 9070B
|
1:1 SSPA redundancy system for 9624H 240W rack-mount SSPA
|
| CODAN 9070C |
1:2 SSPA redundancy system for 9660/9612H 60/120W rack-mount SSPAs |
| CODAN 9070D |
1:2 SSPA redundancy system for 9624H 240W rack-mount SSPA |
CODAN VSAT Ku-Band SSPA redundancy systems
|
CODAN 9070E
|
1:1 SSPA redundancy system for 9440 40 W rack-mount SSPA |
|
CODAN 9070F
|
1:1 SSPA redundancy system for 9480 80 W rack-mount SSPA
|
| CODAN 9070G |
1:2 SSPA redundancy system for 9440 40 W rack-mount SSPA |
| CODAN 9070H |
1:2 SSPA redundancy system for 9480 80 W rack-mount SSPA |
CODAN quality and service
The SSPAs are built and tested in CODAN ISO9001 quality certified manufacturing facility, and undergo 100% burn in and performance testing.
CODAN fully trained staff and agents provide in-factory and in-country training services, and complete installation and on-site assistance. This service is backed up by a 24 hour customer service line and a warranty of three years on manufacturing, design or component defects.
VSAT C-Band SSPA CODAN 9660/9612H/9624H specifications
Frequency range
|
Frequency range
|
5.85 to 6.425 GHz |
Output power @ 1 dB GCP
|
CODAN 9660
|
+47.8 dBm (60W) typical
+47.0 dBm (50W) minimum
|
| CODAN 9612H |
+50.8 dBm (120W) typical
+50.0 dBm (100W) minimum |
| CODAN 9624H |
+53.8 dBm (240W) typical
+53.0 dBm (200W) minimum |
Third order intermodulation products
|
(2 equal carriers each at 6 dB OPBO from 1 dB GCP)
|
-26 dBc maximum |
Gain
|
Gain (small signal)
|
65 dB minimum (0 dB SSPA attenuator setting)
|
Gain variation
5.85 to 6.425 GHz
Any 40MHz in band |
+1.0 dB maximum
+0.3 dB maximum |
| Gain stability |
±1.5 dB maximum, -5°C to +45°C |
| Gain adjustment |
0 dB to -20 dB in 0.2 dB steps
|
Noise power
|
(at max gain)
|
-90 dBm/Hz maximum |
AM/FM conversion
|
(at 1 dB OPBO from 1 dB GCP)
|
2°/dB maximum |
Spurious
|
(at rated output power, in band)
|
-65 dBc maximum |
Harmonics
|
(at rated output power)
|
-50 dBc maximum |
Group delay
|
Linear
|
0.03 ns/MHz |
| Parabolic |
0.003 ns/MHz2 |
| Ripple |
1 ns p-p |
VSWR
|
Input
|
1.3:1 maximum |
| Output |
1.25:1 maximum |
Protection
| Over temperature shutdown |
Output Isolator |
Monitor and control
|
Monitor
|
RF power meter
RF monitor @ -41 dBc nominal
FET flange temperature
Internal supply rail voltages
Status and alarms |
| Control |
Mute
Gain
Low/high power thresholds |
| Alarms |
Over temperature
FET failure
Low/high RF power |
| Alarm logic levels |
Dry contacts |
| Serial interface |
RS232/RS422/RS485 |
| Data rate |
300/1200/2400/9600 bit/s
|
Connectors
| Input |
SMA female, 50 Ω
|
|
Output
SSPA
via adaptor supplied
|
UER70 waveguide flange (8 holes, M4 x 8mm deep)
CPR137F waveguide flange (8 holes, M5 x 8mm deep)
|
|
RF monitor
|
SMA female, 50 Ω
|
| Remote interfaces |
25-way D-type sockets with screw locking |
|
ÀÑ
CODAN 9660/9612H
CODAN 9624H
|
IEC chassis plug
Fixed cable
|
Power supply
| Voltage |
115/230 V AC -10%/+15%, 47 to 63 Hz
|
Consumption
CODAN 9660
CODAN 9612Í
CODAN 9624Í |
400 VA typical
750 VA typical
1450 VA typical
|
Operating environment
| Operating temperature |
-5°C to +45°C
|
| Humidity |
Up to 95% non-condensing |
| Cooling |
Forced air |
Mechanical
|
Size
CODAN 9660 and 9612H
CODAN 9624Í
|
Standard 19'' rack (3RU)
482mm W x 530mm D x 132mm H
Chassis to 297-1 IEC
Standard 19'' rack (5RU)
482mm W x 585mm D x 222mm H
Chassis to 297-1 IEC
|
|
Weight
CODAN 9660 and CODAN 9612H
CODAN 9624H
|
24 kg
38 kg
|
| Mounting |
Sliding rails |
VSAT Ku-Band SSPA CODAN 9440/9480 specifications
Frequency range
|
Frequency range
|
14.0 to 14.5 GHz |
Output power @ 1 dB GCP
|
CODAN 9440
|
+46.7 dBm (47W) typical
+46.0 dBm (40W) minimum
|
| CODAN 9480 |
+49.0 dBm (80W) typical
+48.5 dBm (70W) minimum |
Third order intermodulation products
|
(2 equal carriers each @ 6 dBc OPBO from 1 dB GCP)
|
-25 dBc maximum |
Gain
|
Gain (small signal)
|
60 dB minimum (0 dB SSPA attenuator setting) |
Gain variation
14.0 to 14.5 GHz
Any 40MHz band |
+1.0 dB maximum
+0.3 dB maximum |
| Gain stability |
±1.5 dB maximum, -5°C to +45°C
|
| Gain adjustment |
0 dB to -20 dB in 0.2 dB steps
|
Noise power
|
(@ max gain)
|
-82 dBm/Hz maximum |
AM/FM conversion
|
(@ 1 dB OPBO from 1 dB GCP)
|
2°/dB |
Spurious output
|
(@ rated output power, in band)
|
-65 dBc maximum |
Harmonics
|
(@ rated output power)
|
-50 dBc maximum |
Group delay (over 40MHz)
|
Linear
|
0.03 ns/MHz |
| Parabolic |
0.003 ns/MHz2 |
| Ripple |
1 ns p-p
|
VSWR
|
Input
|
1.3:1 maximum |
| Output |
1.25:1 maximum |
Protection
| Over temperature shutdown |
Output isolator |
Monitor and control
|
Monitor
|
RF power meter
RF monitor @ -41 dBc nominal
FET flange temperature
Internal supply rail voltages
Status and alarms |
| Control |
Mute
Gain
Low/high power thresholds |
| Alarms |
Over temperature
FET failure
Low/high RF power |
| Alarm logic levels |
Dry relay contacts |
| Serial interface |
RS232/RS422/RS485 |
| Data rate |
300/1200/2400/9600 bit/s
|
Connectors
| RF input |
SMA female, 50Ω
|
|
RF output
|
UBR120 flange (WR75) (4 holes, M4 x 8mm deep)
|
|
RF monitor
|
SMA female, 50Ω
|
|
Remote interfaces
|
25-way D-type sockets with screw locking |
| AC input |
IEC chassis plug |
Power supply
| Voltage |
115/230 VAC -10%/+15%, 47 to 63 Hz
|
|
Consumption
CODAN 9440
CODAN 9480
|
430 VA typical
800 VA typical |
Operating environment
| Operating temperature range |
-5°C to +45°C
|
| Relative humidity |
Up to 95% non-condensing |
| Cooling |
Forced air |
Mechanical
|
Size
CODAN 9440
CODAN 9480
|
Standard 19" rack (3RU)
482mm W x 590mm D x 132mm H
Standard 19" rack (5RU)
482mm W x 590mm D x 222mm H
|
|
Weight
CODAN 9440
CODAN 9480
|
25 kg
37 kg
|
| Mounting |
Sliding rails
|
